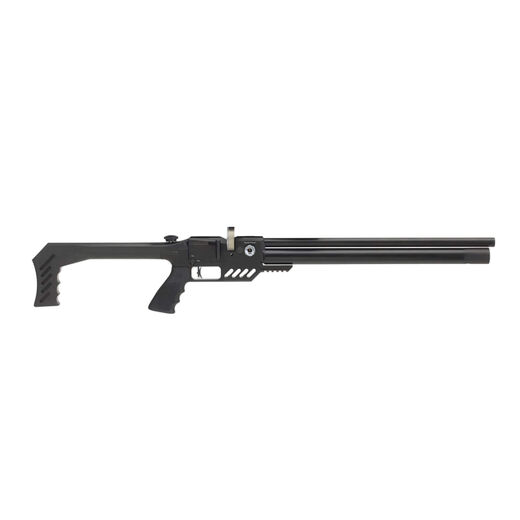

New FX Dreamline Lite .22Air Standard 500mm Standard Cylinder

An Airgun Unlike Any Other FX.

The FX Dreamline Lite is a new look model unlike other FX rifles from the past. Weighing in at 5 ½ pounds, this Dreamline lives up to its name of being ultra-light weight. It is also the most customizable of all the Dreamline models.



The Dreamline Concept

With the arrival of the FX Dreamline, innovation that was previously only dreamed about, is now a reality. The FX Dreamline is the first fully modular airgun system in the world.

Smooth Twist X Barrel

The beauty of the FX Dreamline starts with the revolutionary world class FX Smooth Twist X barrel (STX). This is the same barrel housing and liner system as found on other elite rifles such as the FX Impact, FX Crown and FX Wildcat. The STX barrel allows the Dreamline the unique ability of changing both the caliber of the gun as well as the inner liner of the barrel to allow for different twist rates and other bore specifications. This provides a tailored barrel to meet the vast array of projectiles available today.

Adjustable Match Precision Regulator

The Dreamline also includes the new AMP Regulator (Adjustable Match Precision Regulator). This robust regulator is revolutionary in that it can be adjusted externally either to higher or lower pressures without the need to remove pressure from the gun. The AMP regulator also uses the latest in high performance parts to provide precision accuracy that holds up over time.

Fine Tuning

The FX Dreamline features the same adjustability as found on other premium FX rifles. All adjustments can be fine tuned including valve flow, hammer tension, and regulator pressure. These adjustments are done quickly and easily allowing the shooter find harmonic balance and maximize the performance and accuracy of the Dreamline.

Rotary Magazine

All FX Dreamline models utilize a large capacity rotary magazine. This is the same magazine used in the FX Crown and is indexed with the smooth cocking side lever. This newly designed side lever takes the ease of cocking a rifle to a whole new level as it is nearly effortless to cock.

Most Dreamline models offer a standard 220 cc cylinder filled up to 230 BAR, but there are also bottle versions of many of the configurations which will allow for more air and higher shot counts. ½” UNF threads on the barrel allow for the optional addition of a moderator. The FX Dreamline also features the world-famous FX match grade trigger, set at 15 ounces from the factory.

Additional features:
Interchangeable Barrel Liner System (with changeable core barrel liner to obtain various twist rates).
AMP Externally adjustable pressure regulator.

COCKING SYSTEM Sidelever

MAGAZINE TYPE Removable high capacity, easy load.
Made in durable injection-molded POM 18 shot when Cal .22

STOCK Synthetic, Quick release rear stock.
Ambidextrous

GRIP AR15 (hogue pistol grip included)

CALIBER 5,5 (.22)

BARREL
FX Smooth twist X
Match grade
Free floating
length 5,5 (.22): 500 mm

FILL PRESSURE230 Bar • 3300 Psi

SAFETY Manual

OPTICS 11 mm dovetail scope mount

MUZZLE ½” UNF

PRESSURE GAUGE
One for airtube pressure
One for regulator pressure

TRIGGER Adjustable match trigger

VELOCITY 5,5 (.22): 275 m/s • 910 ft/s

ENERGY 5,5 (.22): 41 J • 30 ft/lbs

AIR CAPACITY 5,5 (.22) 220 cc

LENGTH 5,5 (.22): 960 mm

WEIGHT 2,6 kg

CHARGING Quick charge system
